Shot Blasting Machine

Rubber Belt Shot Blasting Machine for Bolt Cleaning and Strengthening

Port:Ningbo sea port
Production Capacity:100sets/Month
Payment Terms:T/T
Application:Electronic Industry
Fuel:Electric
Type:Crawler Abrator
Cleanliness:High Cleanliness
Automation:Automatic

Inquiry

Rubber Belt Shot Blasting Machine For Bolt Cleaning and Strengthening

Rubber belt shot blasting machine is suitable for small size workpiece, like nut, bolt, spring, and so on. It can clean the rust and strengthen the structure.

Application:

This series of products is suitable for the fields of steel casting, shipbuilding, and workpiece strengthening. Used for rust removal, anticorrosion, and strength enhancement. Mainly used for processing small workpieces that are not afraid of collision

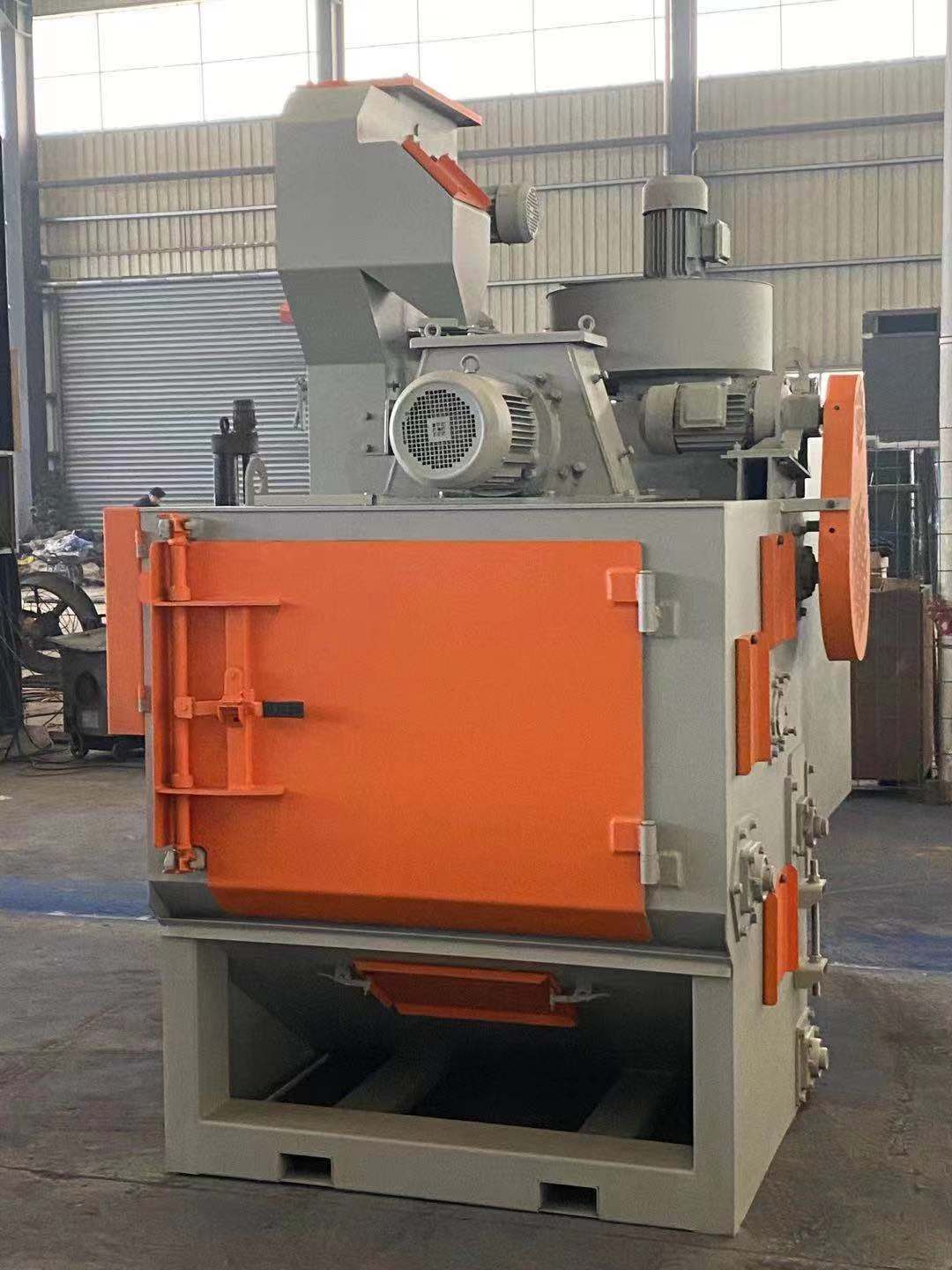

Rubber Belt Shot Blasting Machine for Bolt Cleaning and Strengthening(图1)

Features:

1. Compact design, simple operating principle
2. Automatic loading and unloading, mass production of small and medium-sized products
3. Apply to multi-variety, large-medium batch production
4. Used separately, or used in production line.
5. Adopt wear-resisting rubber tracks, can reduce the collision and damage of the workpiece and reduce the noise of the machine.

Technique Parameter:

Parameter	Unit	Q326	QR3210	QR3220
Productivity	T/h	0.6-1.2	1.5-2.5	1.5-2.5
Weight Of Feeding	kg	300	600	600
The Maximum Weight of one piece	kg	10	30	50
Diameter Of End Disk	mm	φ650	φ1000	φ1000
Effective Volume	m3	0.15	0.3	0.3
Abrasive flow rate	kg/min	100	180	2*180
Ventilation	m3/h	2200	5000	8000
