Shot Blasting Machine

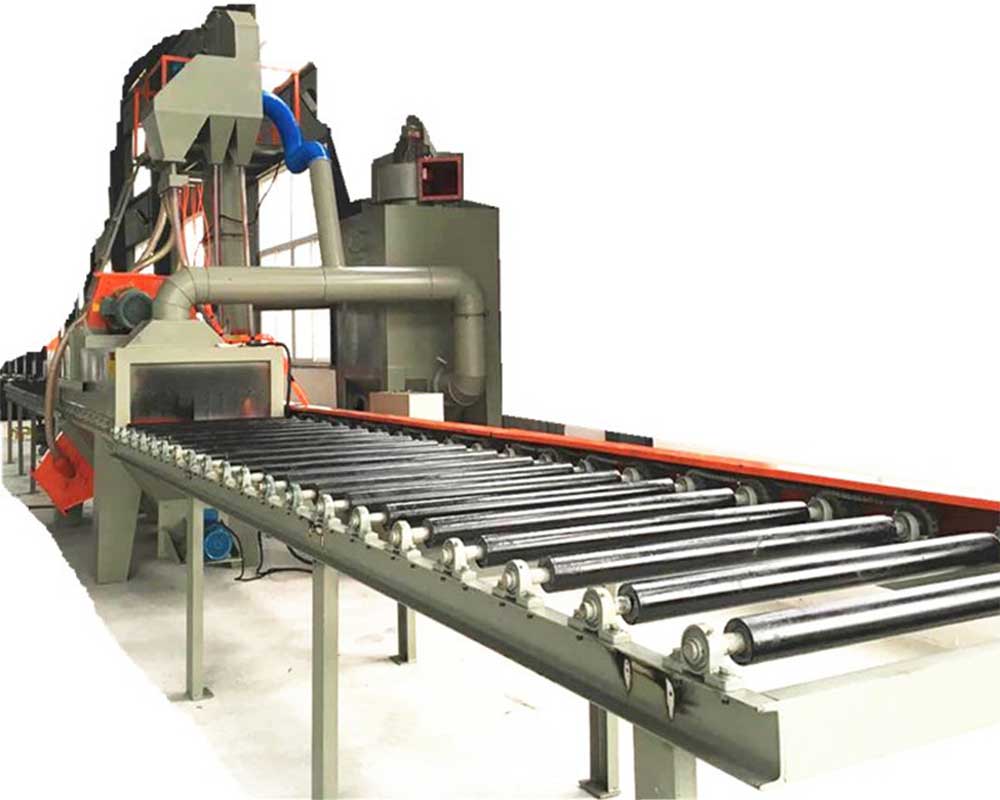

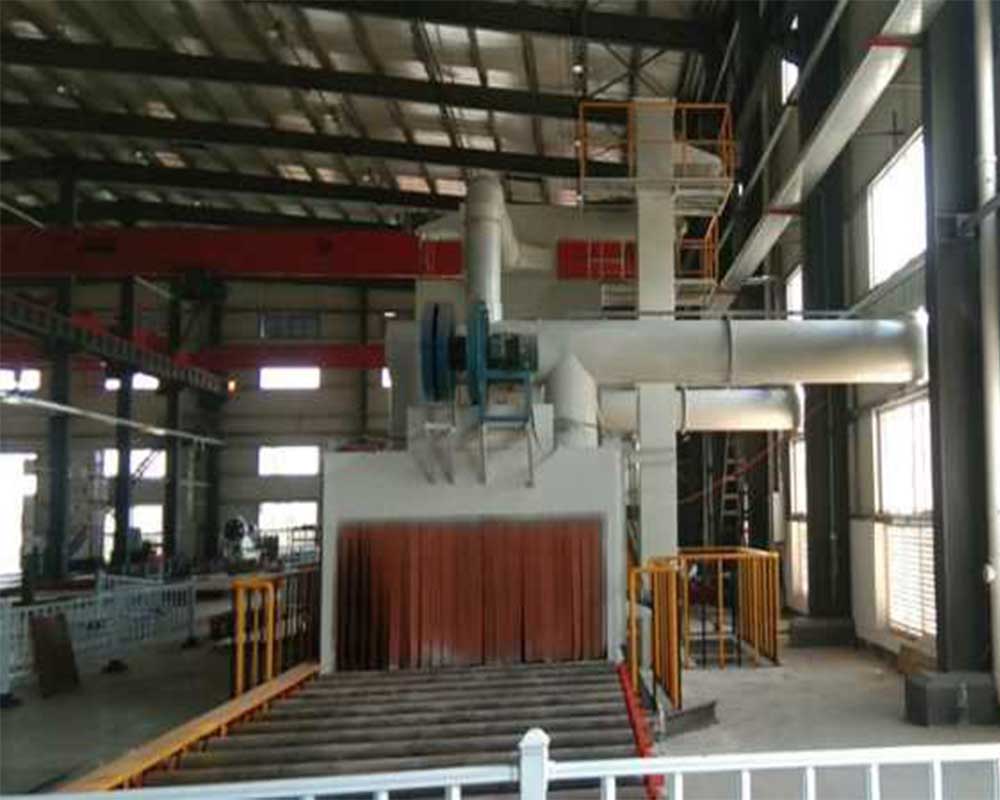

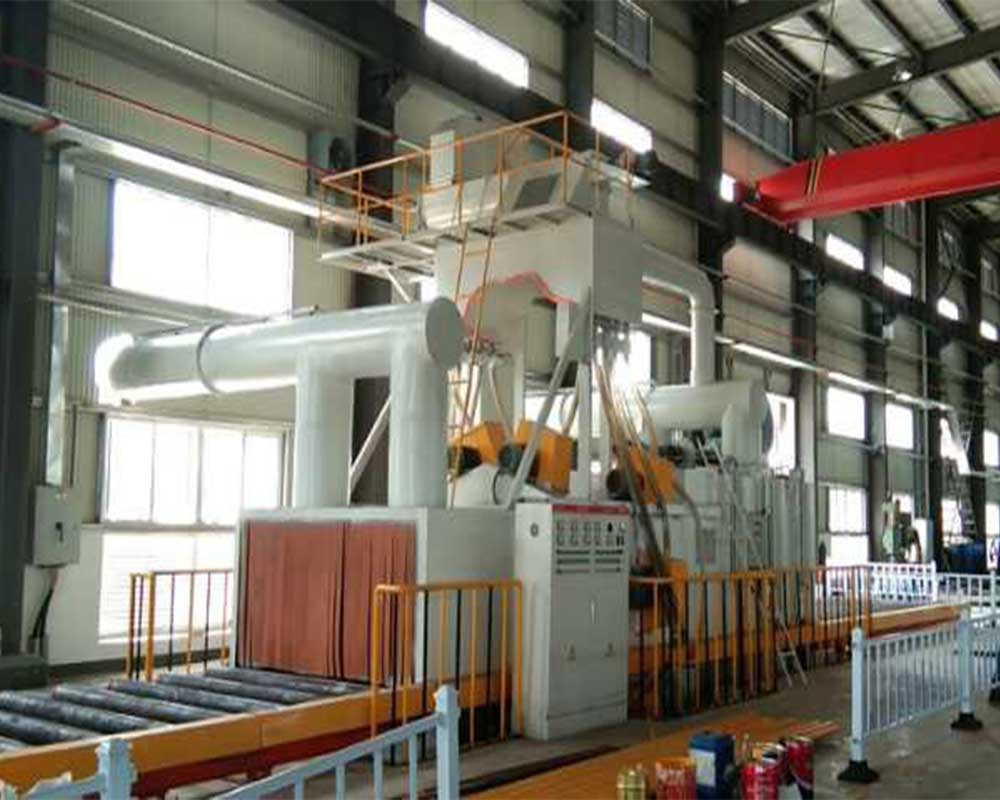

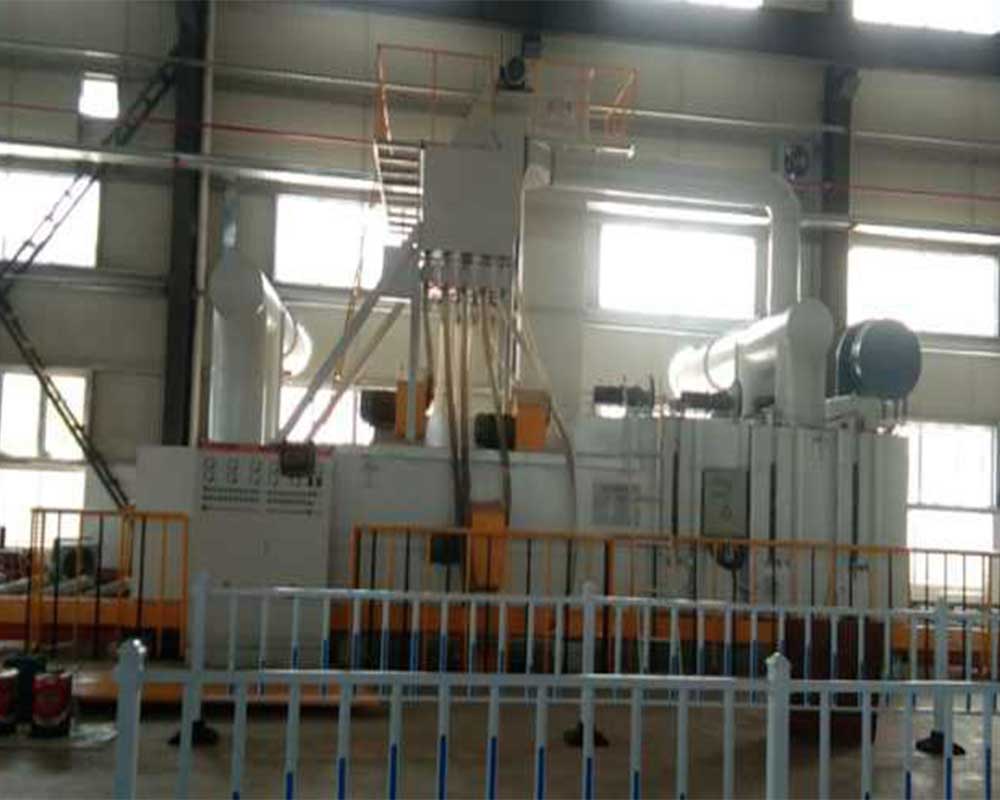

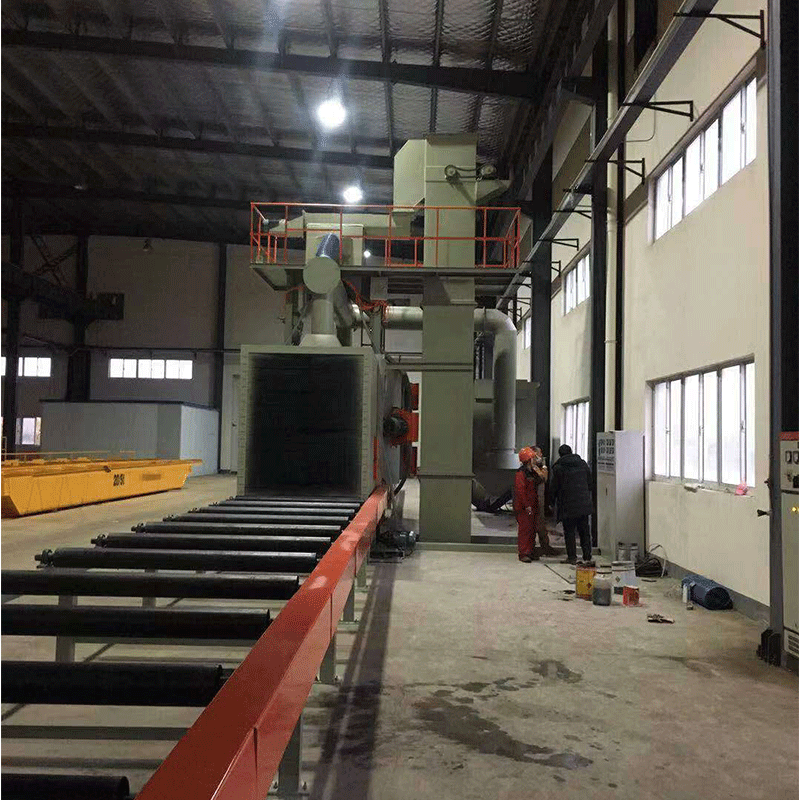

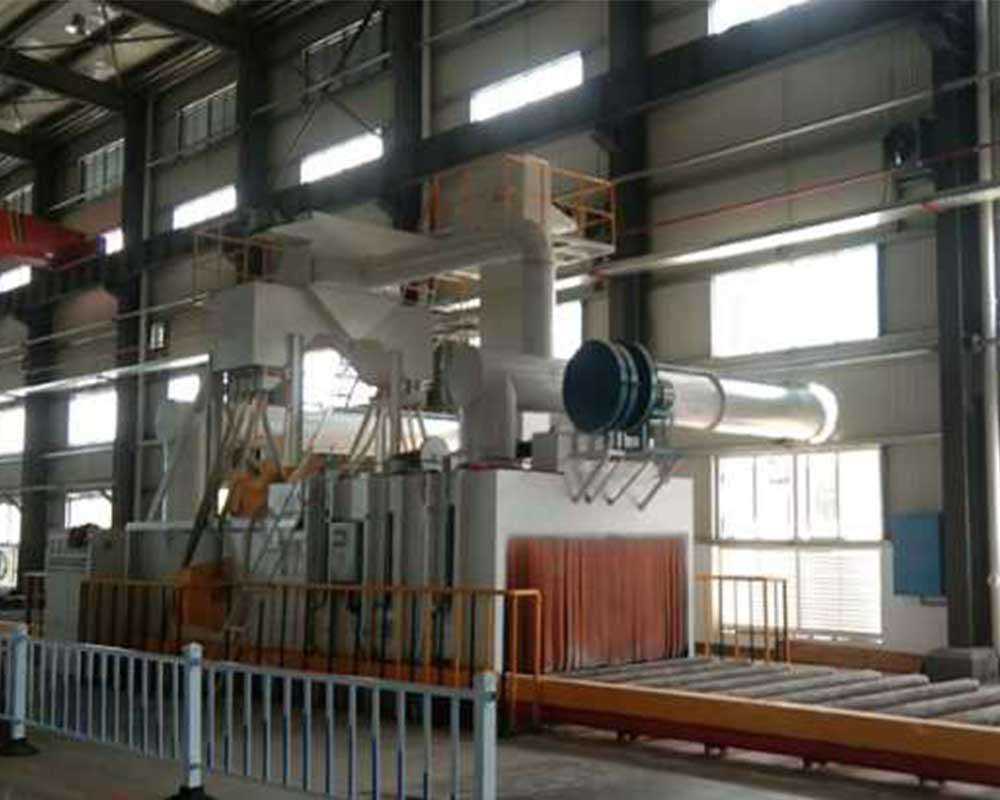

Automatically Pass Though Type Steel Plate Pipe Shot Blasting Machine

1.Port:Ningbo sea port
2.Production Capacity:100sets/Month
3.Payment Terms:T/T,EXW
4.Application:Cleaning and Painting
5.Fuel:Electric
6.Type:Crawler Abrator
7.Cleanliness:High Cleanliness
8.Automation:	Automatic
9.Certification:	CE, CB, CSA, ETL, RoHS, UL, UR, ISO TUV

Inquiry

Product Description

1.Application

This machine applies to clean the rust and painting on the surface of the steel plate,section steel and steel structure in shipping,car,motorcycle,bridge and machine industry.

2.Product Feathers

1.Blasting zone adopts computer aided design,and the upper and lower shot well-distributed.

2.Its adopts photoelectric detection.It has the function of automatic control for measuring width,measuring height ,measuring displacement

3.Technical Parameter

Parameter	Unit	BQ698	BQ6912	BQ6915	BQ6920
Effective cleaning width	mm	800	1200	1500	2000
Inlet size of the blasting chamber	mm	1000x400	1400x400	1700x400	2200x400
Length of workpiece	mm	1200-12000	1200-12000	1500-12000	2000-12000
Abrasive flow rate	Kg/min	4x180	4x250	4x250	4x250
Delivery speed of roller(stepless speed)	m/min	0.5-4	0.5-4	0.5-4	0.5-4
Amount of first time loading	kg	3000	3000	3000	4500
